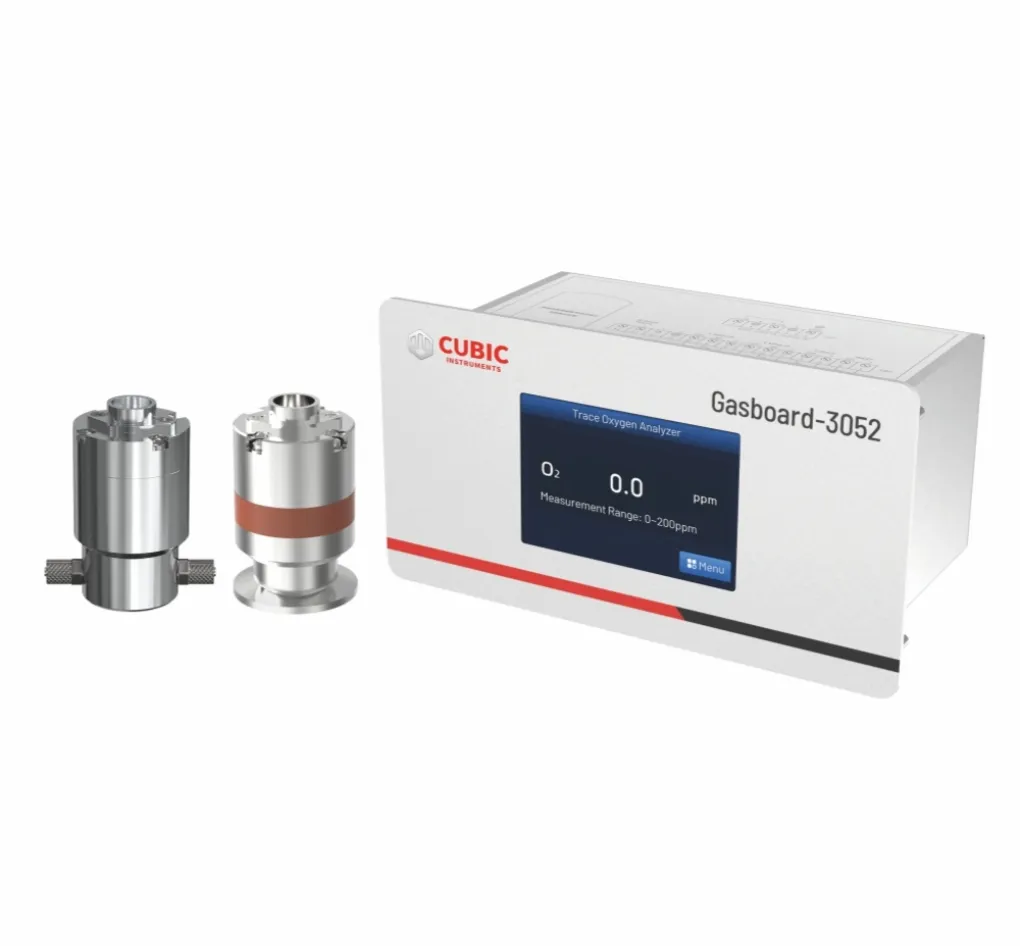

Gasboard-3052 is a trace oxygen analyzer designed for high-precision trace-level oxygen measurement in industrial processes. Based on Zirconia technology, Gasboard-3052 delivers fast response and stable long-term performance, with no routine calibration required and low maintenance requirements. It is widely used in applications including semiconductor manufacturing, air separation, and inert gas welding, enabling precise oxygen monitoring and control in critical industrial processes.
Zirconia technology for high-precision ppm-level oxygen measurement
Excellent long-term stability with no regular calibration required
Strong anti-interference capability with minimal interference from other gases
Compact modular design for easy installation
User-friendly interface with clear informative display for convenient operation
| Measurement Component | O2 |
| Range | 0-100ppm, 0-1000ppm, auto |
| Accuracy | 2%F.S |
| Resolution | 0.1ppm |
| Response Time | ≤10s |
| Warm-up Time | 5min |
| Refresh Rate | 1Hz |
| Operating Temperature | (0～50) ℃ |
| Relative Humidity | 0–95% RH (non-condensing) |
| Operating Voltage | 176-264VAC or 12VDC |
| Power Consumption | < 15W |
| Analog Current Output | 4–20 mA (max load 500 Ω) |
| Analog Voltage Output | 0-1, 0-5, 0-10VDC |
| Alarm Output | 2 alarms, 1 fault alarm |
| Communication | RS232 |
| Gas Path Connection | KF25 |
| Weight | 1.5kg |
| Dimensions | Split-type design: probe + analyzer Analyzer (L×W×H): 178 × 105.5 × 95.2 mm Probe (D×L): 40 × 64.5 mm |
